What Is Utility Scale Battery Storage? Complete BESS Systems & Cost Guide

Introduction

The global transition toward decentralized power grids requires massive deployment of grid-stabilizing assets. As variable clean energy replaces fossil-fuel baseload generation, managing peak current and maintaining grid frequency requires heavy-duty infrastructure assets. Incorporating utility scale battery storage into distribution and transmission networks has transitioned from an experimental capability to an absolute operational necessity. These systems decouple energy generation from real-time consumption, ensuring grid stability while enabling high-volume grid-scale energy storage for intermittent clean assets. For utilities, independent power producers (IPPs), and investors navigating this massive market shift, executing a comprehensive infrastructure layout demands deep familiarity with advanced hardware configurations, strict grid interconnection guidelines, and highly dynamic energy arbitrage revenue models.

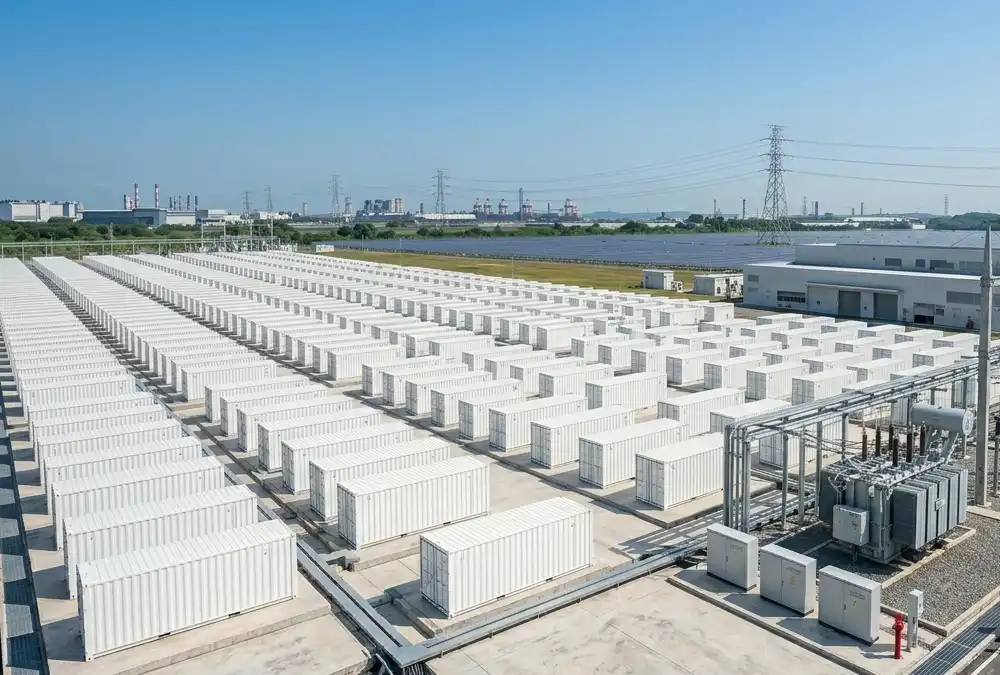

What Is Utility Scale Battery Storage?

How Utility-Scale Battery Storage Systems Work

At its core, a utility scale battery energy storage system operates as a bidirectional power reserve connected directly to high-voltage transmission networks or distribution substations. During periods of low grid demand or excessive renewable generation, power flows through a multi-stage transformer setup into a heavy-duty power conversion system (PCS), which rectifies alternating current (AC) into direct current (DC) to charge the electrochemical cells. When grid strain occurs, or during peak demand pricing windows, the process reverses: the DC current stored within the cells flows back through the PCS inverters, transforming into synchronized AC power injected precisely into the utility grid busbar.

Difference Between Utility-Scale, Commercial, and Residential Energy Storage

The primary differentiation among these storage classifications lies in grid placement, operating voltage, and overall battery storage capacity. Residential systems are small-scale assets (typically 5 kW to 20 kW) designed for single-phase home backup and self-consumption optimization. Commercial and Industrial (C&I) systems range from 50 kW to a few megawatts, optimized for localized peak shaving and demand charge management behind the utility meter. True utility scale battery storage solutions operate in front of the meter at transmission-level voltages, handling tens or hundreds of megawatts with high-capacity controls designed to manage regional power stability.

Key Components of a Utility Scale Battery Storage System

An industrial-grade utility energy storage layout relies on an interconnected ecosystem of sub-systems to ensure efficient energy conversion and absolute operational safety:

• Battery System: The physical core consisting of thousands of individual electrochemical cells arranged in series and parallel configurations to form high-voltage battery modules, which are securely mounted within industrial rack frameworks inside weatherproof enclosures.
• PCS (Power Conversion System): High-capacity bidirectional inverters that manage AC/DC power rectification. The PCS handles dynamic reactive power control, phase synchronization, and voltage regulation required for seamless high-voltage grid interaction.
• BMS (Battery Management System): A multi-tiered monitoring architecture. The localized BMS tracks cell-level voltage, module-level temperature, and structural state-of-health (SoH), communicating directly with primary safety layers to isolate faults instantly and prevent thermal runaway propagation.
• EMS (Energy Management System): The intelligent software core that runs real-time algorithmic control loops. The EMS analyzes market pricing, schedules charge/discharge profiles, and executes automatic power market commands to optimize overall utility energy management.
• Fire Protection System: A multi-stage safety setup comprising early-stage gas detection (off-gas detection for lithium-ion cells), automated clean-agent gas suppression (such as Novec 1230), and localized zone isolation to comply with stringent fire codes.
• SCADA and Grid Monitoring: High-speed industrial communication interfaces providing substation control centers with complete real-time visibility into BESS metrics, enabling precise grid balancing.

Typical Utility-Scale Battery Storage Capacities

Modern utility scale BESS project development targets scalable, standardized building blocks. Typical field installations begin at a nominal block size of 5MW / 20MWh (a standard 4-hour configuration) and scale up to massive installations exceeding 500MW / 2000MWh. System configurations are optimized according to the targeted application, using either high-power density builds for short-duration ancillary services or long-duration energy storage setups for multi-hour peak load shifting.

Why Utility Scale Battery Storage Is Critical for Modern Power Grids

Growing Renewable Energy Penetration

As international mandates accelerate the adoption of clean energy assets, regional distribution networks face unprecedented generation profiles. Decarbonization and net-zero goals require replacing traditional thermal baseload power plants with massive quantities of clean energy, which fundamentally alters how transmission systems maintain grid stability.

Challenges of Intermittent Solar and Wind Generation

Unlike reliable thermal generation, solar and wind assets exhibit deep, sudden intermittency driven by fast-moving cloud cover or variable wind velocities. This lack of dispatchability introduces severe challenges, such as the famous “duck curve” where intense mid-day solar production drops off rapidly just as evening residential consumer demand spikes. Without large-scale battery storage, utilities must routinely execute costly renewable energy curtailment, forcing clean generators offline to prevent grid overloads.

Grid Stability and Reliability Requirements

To keep alternating current distribution networks safe from equipment failures, grid frequency must be held at a precise equilibrium (typically 50Hz or 60Hz). Sudden shifts in load or generation cause frequency volatility. Deploying large-scale utility scale battery storage systems provides grid operators with sub-millisecond response tools capable of injecting or absorbing immense power blocks instantly. This rapid response provides crucial frequency regulation, dampening localized transients and dramatically enhancing overall grid resilience.

Utility-Scale Battery Storage Systems and Their Core Components

Battery Technologies Used in Utility Energy Storage

Deploying a robust utility scale BESS requires evaluating different electrochemical cell properties based on long-term cycle life, safety metrics, and upfront investment requirements:

• Lithium Iron Phosphate (LFP): The definitive industrial baseline for utility energy storage. LFP chemistry offers high thermal stability, a lack of volatile cobalt dependencies, and a long cycle life (typically 6,000 to 8,000 full cycles at 80% Depth of Discharge), making it highly reliable for heavy daily grid operations.
• Nickel Manganese Cobalt (NMC): Known for excellent volumetric energy density, NMC allows for compact system configurations. However, it exhibits a lower thermal runaway breakdown threshold and a shorter overall cycle life under intense grid cycling, requiring complex liquid cooling configurations.
• Flow Batteries (e.g., Vanadium Redox): An emerging alternative for long-duration energy storage. Flow batteries store energy in large external liquid electrolyte tanks, offering near-infinite cycle life without structural cell degradation. They are highly effective for 8-hour to 24-hour load-shifting applications, though they carry higher initial installation costs and require a larger physical site footprint.

Utility-Scale PCS Architecture

The power conversion system architecture dictates how high-voltage DC battery racks interface with high-voltage AC utility substations. Modern large scale battery storage installations use either centralized inverters or decentralized string inverters. Centralized inverter systems streamline multi-megawatt configurations by aggregating multiple battery blocks into a single high-capacity conversion unit, which optimizes system costs for flat grid terrains. Decentralized string inverter setups handle power conversion at the individual rack or stack level, providing excellent granularity in state-of-charge management and maximizing overall site availability by preventing a single inverter fault from taking an entire battery block offline.

Advanced BMS for Grid Applications

To safely manage multi-megawatt systems, a three-tier Battery Management System (BMS) framework is utilized. The Tier 1 BMU (Battery Module Unit) continuously monitors individual cell voltages and balancing parameters. The Tier 2 SBMS (Stack Battery Management System) aggregates this data across a vertical rack to monitor total current and localized hot spots. Finally, the Tier 3 MBMS (Master Battery Management System) coordinates across multiple equipment containers, interfacing directly with the main substation SCADA systems to safely manage overall battery storage capacity limits.

Thermal Management and Fire Suppression Systems

Maintaining stable interior temperatures is critical for protecting lithium-ion cell lifespans. Advanced modern installations rely on high-efficiency liquid cooling loops routed directly across cell module faces, keeping temperature variations across massive containerized blocks within a tight ±2°C range. This uniform thermal environment is paired with multi-tiered safety systems, including automated off-gas deflagration venting, aerosol fire suppressants, and dry-pipe water deluge connections to fully mitigate safety risks and comply with local fire regulations.

Containerized vs Building-Based BESS Designs

Prefabricated modular containerized BESS designs are the preferred choice for most modern utility infrastructure projects. Assembling, pre-wiring, and testing complete systems inside durable 20-foot or 40-foot steel ISO containers at the factory significantly lowers on-site engineering risks and shortens civil deployment timelines. Building-based BESS designs are typically reserved for specialized indoor urban settings or tight substation footprint constraints, where multi-story structures are required to achieve massive localized gigawatt-hour storage goals.

Utility Scale Battery Storage Applications for Grid Stability

Transmission and Distribution Deferral

As urban electricity consumption grows, traditional transmission infrastructure can become severely congested. Upgrading high-voltage transmission lines and expanding physical substation footprints often requires massive capital investments and lengthy multi-year permitting processes. Strategically deploying a localized battery storage power plant allows utilities to defer these costly upgrades. The battery asset absorbs power during low-load windows and discharges locally during peak periods, effectively keeping existing transmission line flows well within safe operating limits.

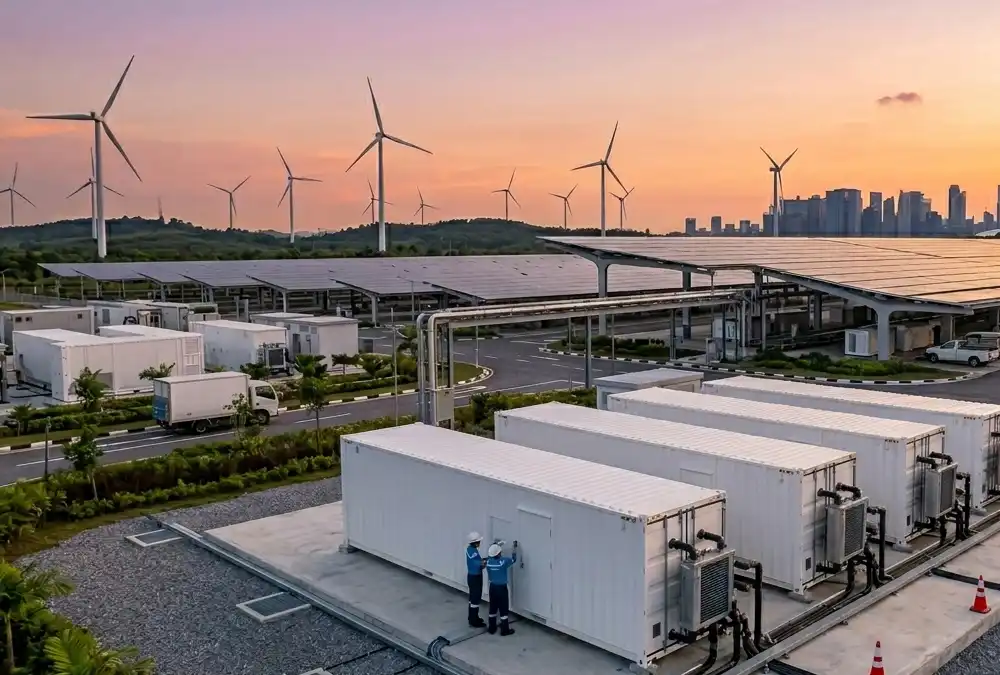

Utility-Scale Battery Storage for Renewable Energy Integration

Integrating large scale battery storage systems directly with utility-scale wind and solar installations transforms variable clean energy into a reliable, dispatchable power resource. In solar farm energy storage configurations, the system smooths out rapid generation drops caused by passing clouds and captures excess midday energy to shift power delivery into profitable evening pricing windows. For wind farm applications, massive storage solutions absorb high nighttime wind generation when grid demand is low, saving that clean energy for high-value daytime use. This integration significantly reduces renewable energy curtailment, allowing operators to capture more value from their clean energy assets and build resilient, hybrid renewable energy microgrids.

Utility Scale Battery Storage Cost Analysis

Analyzing a utility scale battery storage installation requires looking closely at comprehensive equipment pricing, engineering, procurement, and construction (EPC) costs, and long-term operating expenses. Recent market analysis from BloombergNEF’s 2025 Energy Storage Cost Survey shows that stabilizing supply chains and falling raw material costs have driven turnkey system pricing down significantly. This cost reduction has greatly improved project economics for utilities and private developers worldwide.

Operation and Maintenance Expenses

Long-term operation and maintenance (O&M) costs typically range from $6 to $11 per kW-year. These expenses cover routine liquid cooling system servicing, software updates, safety audits, and scheduled battery augmentations. Augmentation is a strategic process where new battery modules are added to the system over time to offset natural electrochemical capacity degradation, ensuring the installation maintains its rated performance throughout a 15-to-20-year project lifecycle.

Utility Scale Battery Storage ROI and Revenue Streams

Utility-Scale Battery Storage Projects Around the World

Globally, utility-scale BESS project development is accelerating rapidly to support grid modernization. Massive multi-megawatt facilities across North America, Europe, and Asia are successfully demonstrating how large-scale storage can replace traditional gas peaker plants. These deployments highlight the importance of proactive engineering design and deep grid interconnection modeling, showing that robust system testing is critical for safely integrating large battery assets into high-voltage transmission grids.

Utility Scale Battery Storage Contractor Selection Guide

Utility Scale Battery Storage Companies and Technology Providers

Building a reliable utility scale BESS requires coordinating multiple specialized technology providers. Tier 1 battery manufacturers focus on delivering highly stable, mass-produced LFP cell modules, while advanced PCS suppliers provide the high-voltage bidirectional inverters needed for grid connection. These hardware components are integrated by specialized system integrators and EPC contractors who manage the complete design, installation, and field commissioning processes. When evaluating utility scale battery storage companies, developers should carefully analyze a supplier’s historical shipment volumes, financial bankability ratings, and field performance history across similar high-voltage grid installations.

Utility Scale Battery Energy Storage System Design Considerations

Designing a high-capacity utility scale BESS requires a careful analysis of technical and site parameters. Engineers must select the optimal storage duration based on targeted applications, using 2-hour systems for fast ancillary services like frequency regulation, or 4-to-8-hour configurations for large-scale renewable energy storage and load shifting. Sizing the total power and energy capacity requires thorough grid interconnection studies to ensure the site can interface safely with local high-voltage lines. Additionally, developers must navigate complex environmental permitting, land use zoning, and safety compliance requirements to build a secure foundation for long-term project expansion.

Challenges Facing Utility-Scale Battery Storage Projects

Despite strong market growth, developers face several challenges during project implementation. High upfront capital costs require careful financial planning and stacked revenue modeling. Long grid interconnection queues can delay project timelines by 18 to 36 months, making early coordination with local utilities essential. Additionally, teams must manage tight global supply chains, implement robust battery lifecycle recycling plans, and design comprehensive fire safety mitigation systems to ensure smooth permitting and safe, long-term operations.

Future Trends in Utility Scale Battery Storage

The evolution of grid-scale energy storage is driven by major advancements in software and hardware. AI-driven energy management systems are transforming utility operations by using predictive machine learning to optimize market bidding strategies and cell safety in real-time. On the hardware side, long-duration alternative technologies are expanding grid capability, while the growth of Virtual Power Plants (VPPs) allows operators to aggregate multiple distributed battery storage solutions into unified trading assets. These innovations, paired with ongoing grid digitalization, are making modern power networks cleaner, smarter, and highly resilient.

Frequently Asked Questions About Utility Scale Battery Storage

What is utility scale battery storage?

It refers to large-scale, front-of-the-meter battery configurations designed to stabilize high-voltage transmission lines, absorb massive blocks of clean energy generation, and provide utilities with fast grid-balancing capabilities.

How much does a utility-scale battery storage system cost?

Total project deployment costs typically range from $155,000 to $210,000 per megawatt-hour (MWh) for standard 4-hour configurations, depending on civil conditions, inverter choices, and substation interconnection requirements.

What is the average utility scale battery storage cost per kWh?

In 2026, the average turnkey cost ranges between **$155 and $209 per kWh** for fully integrated 4-hour systems, benefiting from significant manufacturing efficiencies and stable supply chains.

How long do utility-scale batteries last?

Industrial-grade LFP battery cells generally deliver an operational life of 15 to 20 years, provided the site utilizes proper thermal management and executed scheduled cell augmentations.

What are the benefits of utility-scale battery energy storage?

These systems significantly reduce clean energy curtailment, lower transmission congestion costs, eliminate the need for expensive gas peaker plants, and provide critical grid frequency and voltage support.

How do utility-scale battery storage projects generate revenue?

Project owners generate predictable financial returns by stacking revenues from frequency regulation markets, capacity availability contracts, and wholesale spot-market energy arbitrage.

How do I choose a utility scale battery storage contractor?

Select an experienced engineering partner with a proven track record in high-voltage grid connections, full turnkey EPC capabilities, and comprehensive compliance with UL 9540 and NFPA 855 safety codes.

Conclusion

Why Utility Scale Battery Storage Is Transforming the Power Industry

Deploying utility scale battery storage is a vital step in reshaping modern electricity infrastructure. By providing reliable, bidirectional power capacity, these advanced storage assets solve the inherent intermittency challenges of wind and solar generation, turning variable clean energy into a dependable baseline resource for global distribution networks.

Key Factors for Successful Utility-Scale BESS Deployment

Achieving long-term profitability and grid performance requires strict attention to detail during the project development lifecycle. Developers must focus on optimizing early-stage grid interconnection studies, selecting high-efficiency thermal management layouts, and deploying intelligent EMS platforms capable of navigating complex wholesale power markets successfully.

How Utilities and Developers Can Maximize Long-Term Project Value

As the energy transition accelerates, matching your storage layout with reliable, high-performing equipment solutions is essential for project success. Working with proven, certified system components protects your capital investment, helps maintain grid safety compliance, and builds a resilient energy foundation optimized for long-term operational growth.
