48V 65Ah Lightweight LiFePO4 Battery | Powerful Hill-Climbing Performance

A lightweight 48V power solution for compact low-speed electric vehicles. Designed as a practical lead-acid replacement, it delivers strong hill-climbing performance, longer runtime, and reliable power in a compact package.

Grade-A Automotive Cells
6,500+ Cycle Life
3,328Wh Energy Capacity
MOQ: 10 units
Lead Time: 15–25 days

Inquire Now

Description SPECS FAQS

Previous Next

Product Overview

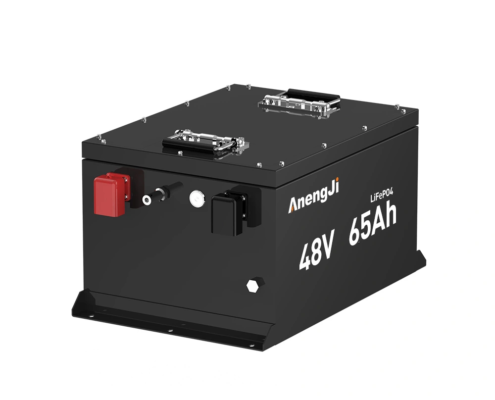

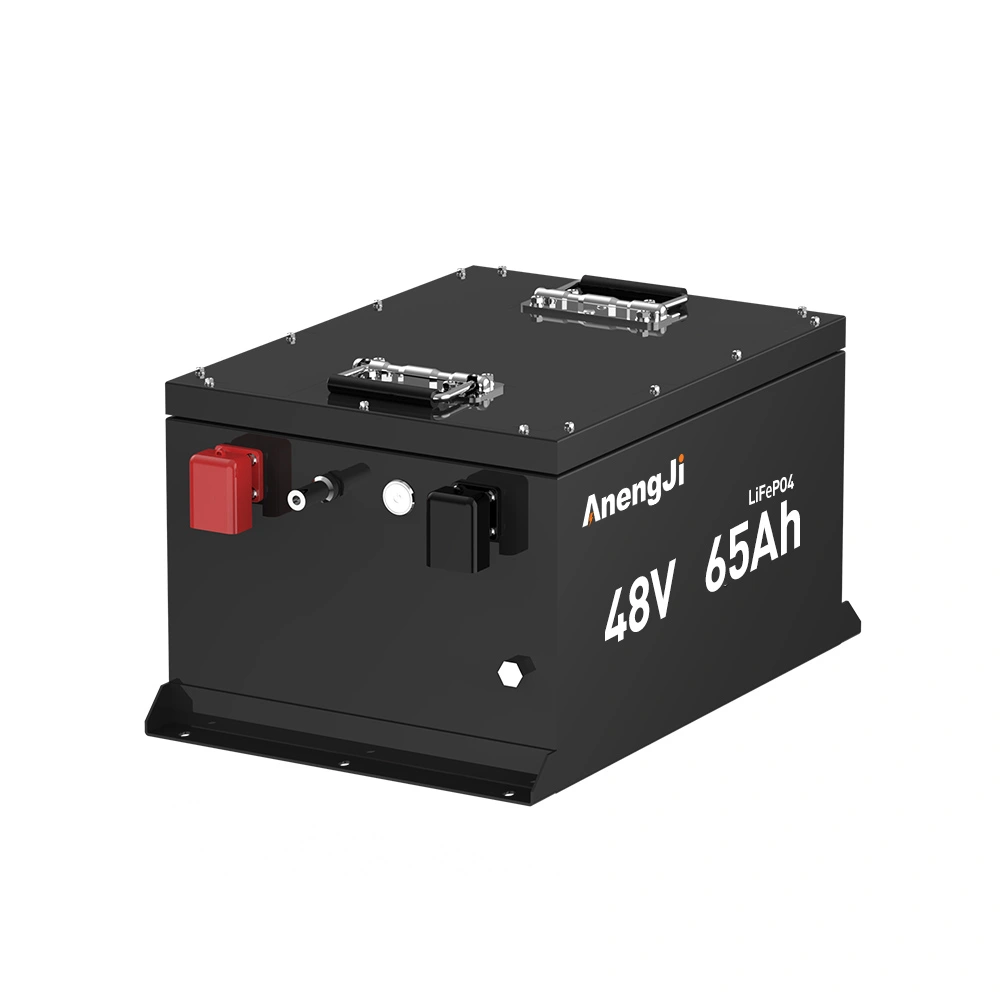

The TP48V65Ah 48V 65Ah LiFePO4 battery uses high-performance Grade-A automotive cells and weighs only 24.5 kg. Optimized PACK configurations help reduce overall weight and size while increasing energy density for improved driving range.

Compared with a lead-acid battery of similar specifications, this lithium battery significantly reduces weight while integrating an intelligent Battery Management System (BMS) and high-rate discharge capability. With a compact 450 × 346 × 230 mm enclosure, it is well suited for electric tricycles, compact four-wheel mobility vehicles, and converted electric bicycles where installation space is limited.

Key Features

Higher Energy Density: Optimized PACK configurations provide approximately 40% longer runtime and up to 50% longer service life compared with comparable battery solutions, delivering more usable energy in a compact package.
Ultra-Lightweight Design: At just 24.5 kg, the battery reduces vehicle weight and motor load, helping improve acceleration, efficiency, and overall driving performance.
Powerful Output: High-performance MOSFETs and relays support stable high-current discharge, delivering consistent power during acceleration, hill climbing, and loaded operation.
All-Weather Performance: Designed to maintain reliable discharge performance across a wide operating temperature range, making it suitable for year-round use.

Application Scenarios

Personal Mobility: Electric Tricycles, Electric Two-Wheelers, Mobility Scooters
Light-Duty Operations: Compact Cleaning Vehicles, Community Patrol Vehicles
Outdoor Recreation: Portable Fishing Boats, Small Electric Scooters

Why Choose This Lithium Ion Battery?

This battery uses advanced nickel-manganese-cobalt chemistry, delivering 20% higher energy density compared to LiFePO4 (LFP). It works reliably across a wide temperature range, from -20°C to +60°C, making it a safe lithium ion battery for both extreme cold and hot conditions.

Higher Energy Density: 20% more capacity than LiFePO4 in the same size.
Wide Temperature Range: Operates from -20°C to +60°C without losing stability.
Fast Charging: Standard 3A charging (4–6 hours full) or optional 5A fast charging (just 2.5 hours).
Cost-Effective: Over a 5-year period, the per-charge cost is as low as $0.05, four times cheaper than lead-acid.
Eco-Friendly: Fully recyclable and compliant with EU ELV standards, reducing heavy metal pollution and supporting sustainable supply chains.

Item	48V 65Ah
Product Dimensions	450346230mm
Product weight	24.5±2kg
Material system	LiFePO4
Nominal voltage	51.2V
Nominal Capacity	65Ah
Configuration	16S1P
Nominal energy	3328Wh
IP Rating	IP55
Communication	4G/RS485/UART
Optional Features	Bluetooth / Display / Low-Temperature Preheating
