24V 230Ah High-Capacity LiFePO4 Battery | Heavy-Duty, Long-Lasting Power

The 24V 230Ah is a high-capacity 24V 230Ah LiFePO4 battery delivering 5,888Wh of reliable energy for heavy-duty electric vehicles and industrial equipment. Designed for extended runtime, high-load operation, and reduced charging frequency.

5,888Wh High Capacity
Built for Heavy-Duty Applications
Grade-A Automotive LiFePO4 Cells
Parallel Expansion Supported
MOQ: 10 units
Lead Time: 15–25 days

Inquire Now

Description SPECS FAQS

Previous Next

Product Overview

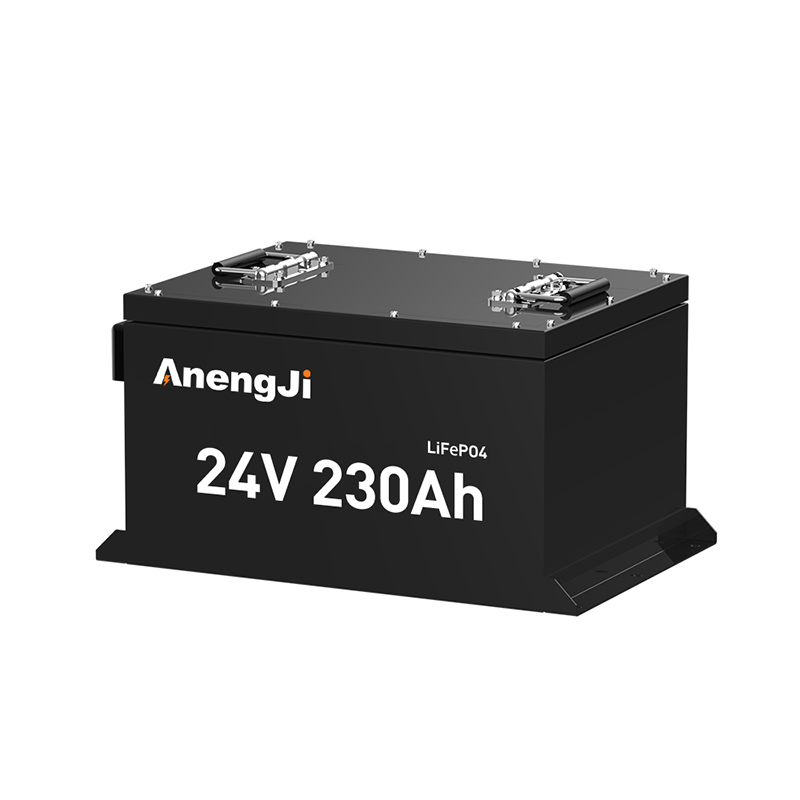

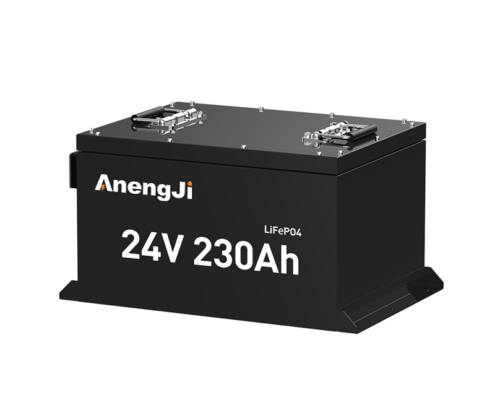

The TP24V230Ah is the flagship model in our 24V battery range, providing an impressive 5,888Wh of energy capacity. It is designed for equipment that requires continuous high-intensity operation and cannot afford frequent charging. Powered by Grade-A automotive LiFePO4 cells, this 24V lithium battery delivers consistent performance under heavy loads.

Its rugged construction is built to withstand demanding working environments, making it a reliable power solution for electric forklifts, large AGVs, and heavy-duty electric tricycles. For applications where uptime and reliability matter, the TP24V230Ah helps deliver dependable power with lower charging frequency.

Key Features

Extended Runtime: With nearly 6kWh of energy capacity, the battery supports extended operation for heavy-duty equipment. Fewer charging interruptions can help increase equipment availability and overall productivity.
Flexible Parallel Expansion: Multiple battery packs can be connected in parallel for applications requiring extended runtime. Depending on power requirements, users can configure systems such as 24V 460Ah or larger battery banks.
Quality Manufacturing: Backed by years of battery manufacturing experience, each battery pack undergoes rigorous testing. A high-quality protection system helps maintain stable current delivery and reliable operation under high-capacity applications.
Reliable Performance Across Environments: Designed for demanding operating conditions, the battery can provide stable performance across a broad temperature range, making it suitable for industrial facilities, warehouses, and outdoor applications.

Application Scenarios

Heavy-Duty Industrial: 3-Ton Electric Forklifts, Heavy-Duty AGVs
Large Electric Vehicles: Electric Passenger Tricycles, Community Shuttle Buses
Backup Power: Telecom Base Station Backup Power, Large Outdoor Lighting Systems

Why Choose This Lithium Ion Battery?

This battery uses advanced nickel-manganese-cobalt chemistry, delivering 20% higher energy density compared to LiFePO4 (LFP). It works reliably across a wide temperature range, from -20°C to +60°C, making it a safe lithium ion battery for both extreme cold and hot conditions.

Higher Energy Density: 20% more capacity than LiFePO4 in the same size.
Wide Temperature Range: Operates from -20°C to +60°C without losing stability.
Fast Charging: Standard 3A charging (4–6 hours full) or optional 5A fast charging (just 2.5 hours).
Cost-Effective: Over a 5-year period, the per-charge cost is as low as $0.05, four times cheaper than lead-acid.
Eco-Friendly: Fully recyclable and compliant with EU ELV standards, reducing heavy metal pollution and supporting sustainable supply chains.

Item	24V 104Ah
Product Dimensions	495202218mm
Product weight	55.0±2kg
Material system	LiFePO4
Nominal voltage	25.6V
Nominal Capacity	230Ah
Configuration	8S1P
Nominal energy	5888Wh
IP Rating	IP55
Communication	4G/RS485/UART
Optional Features	Bluetooth / Display / Low-Temperature Preheating
