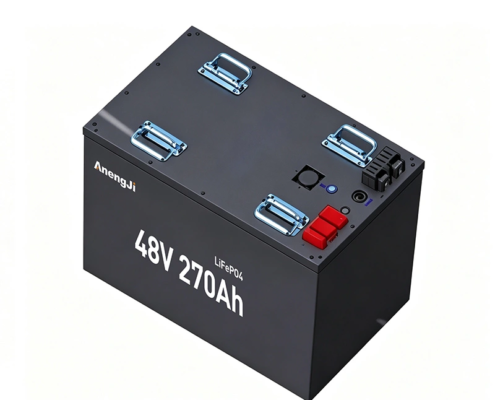

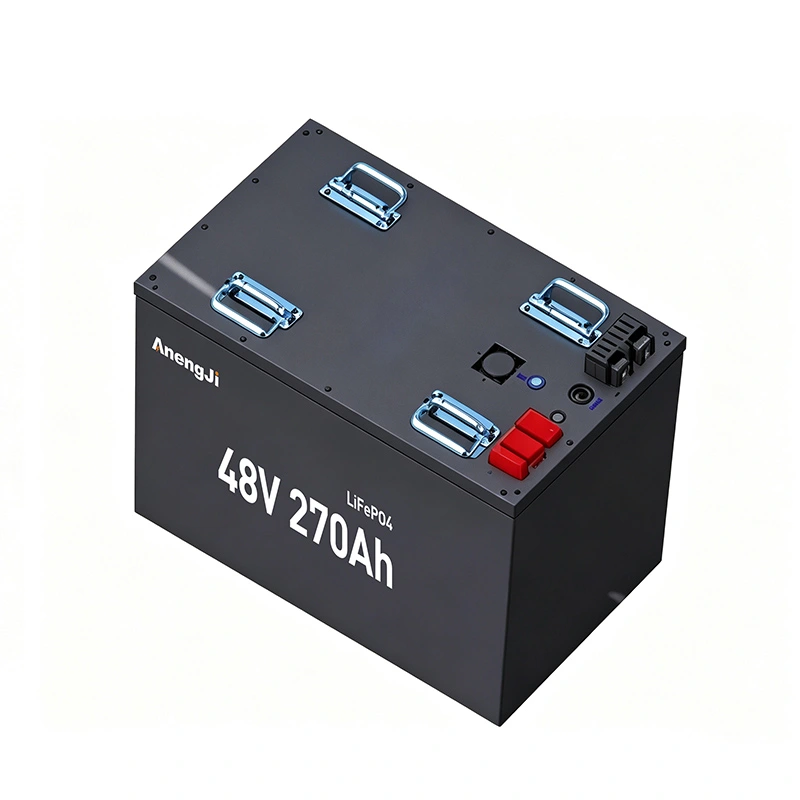

48V 270Ah High-Capacity LiFePO4 Battery Pack | Built for Heavy Loads & Hills

A high-capacity 48V 270Ah LiFePO4 battery delivering 13,824Wh of energy for heavy-duty vehicles, long-distance transport, and demanding industrial equipment. Built for extended runtime and powerful performance on slopes and under heavy loads.

Grade-A Automotive LiFePO4 Cells
6,500+ Cycle Life
13,824Wh High Capacity
Heavy-Duty High-Current Output
MOQ: 10 units
Lead Time: 15–25 days

Inquire Now

Description SPECS FAQS

Previous Next

Product Overview

The TP48V270Ah delivers an impressive 13,824Wh of rated energy, making it a high-capacity power solution for applications requiring extended runtime. Through optimized PACK engineering, the battery combines high capacity with controlled weight and dimensions, achieving excellent energy density within a practical installation footprint.

Built with Grade-A automotive LiFePO4 cells and a high-performance MOSFET and relay system, this 48V lithium battery supports high-power output for demanding terrain, including slopes and hilly environments. Whether used as a mobile power source for a large RV or as the main power supply for a heavy-duty forklift, it provides dependable energy for extended operating periods.

Key Features

High Energy Capacity: With 13,824Wh of energy, the battery supports extended operation and can be connected in parallel with additional battery packs when higher capacity or longer runtime is required.
Wide Operating Temperature Range: Designed for reliable performance across a broad temperature range, providing stable power in both cold and hot operating environments.
Strong Heavy-Load Performance: High-current discharge capability helps electric vehicles maintain consistent power when carrying heavy loads or climbing slopes, making it suitable for demanding transport applications.
Factory-Direct Customization: Standard battery platforms can be customized according to specific requirements, including dimensions, connectors, and communication protocols, helping ensure compatibility with your equipment.

Application Scenarios

Large Electric Vehicles: Heavy-Duty Electric Forklifts, Large Golf Carts, RV and Yacht Auxiliary Power
Energy Storage: Telecom Base Station Backup Power, Residential Solar Energy Storage, Large Portable Power Systems
Specialized Equipment: Long-Running Cleaning Vehicles, Heavy-Duty Flatbed Material Handling Vehicles

Why Choose This Lithium Ion Battery?

This battery uses advanced nickel-manganese-cobalt chemistry, delivering 20% higher energy density compared to LiFePO4 (LFP). It works reliably across a wide temperature range, from -20°C to +60°C, making it a safe lithium ion battery for both extreme cold and hot conditions.

Higher Energy Density: 20% more capacity than LiFePO4 in the same size.
Wide Temperature Range: Operates from -20°C to +60°C without losing stability.
Fast Charging: Standard 3A charging (4–6 hours full) or optional 5A fast charging (just 2.5 hours).
Cost-Effective: Over a 5-year period, the per-charge cost is as low as $0.05, four times cheaper than lead-acid.
Eco-Friendly: Fully recyclable and compliant with EU ELV standards, reducing heavy metal pollution and supporting sustainable supply chains.

Item	48V 270Ah
Product Dimensions	595360452mm
Product weight	136.0±3kg
Material system	LiFePO4
Nominal voltage	51.2V
Nominal Capacity	270Ah
Configuration	16S2P
Nominal energy	13824Wh
IP Rating	IP55
Communication	4G/RS485/UART
Optional Features	Bluetooth / Display / Low-Temperature Preheating
