24V 135Ah Long-Range LiFePO4 Battery | Standard 355mm Narrow Design

24V135Ah Long-Range LiFePO4 Battery | Standard 355mm Narrow Design

24V 135Ah LiFePO4 battery delivering 3,456Wh of reliable power without increasing the battery footprint. Designed for golf carts, forklifts, sightseeing vehicles, and other electric vehicles, it provides longer runtime, stable output, and easy integration with existing battery compartments.

3,456Wh High Capacity
2,000+ Cycle Life
355mm Compact Design
High-Rate Discharge
MOQ: 10 units
Lead Time: 15–25 days

Inquire Now

Description SPECS FAQS

Previous Next

Product Overview

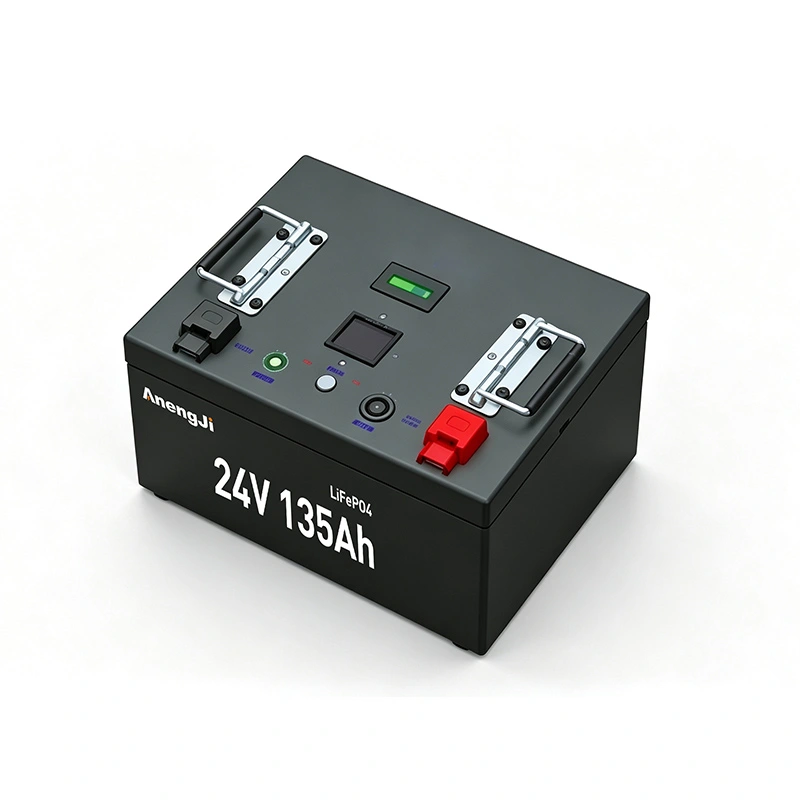

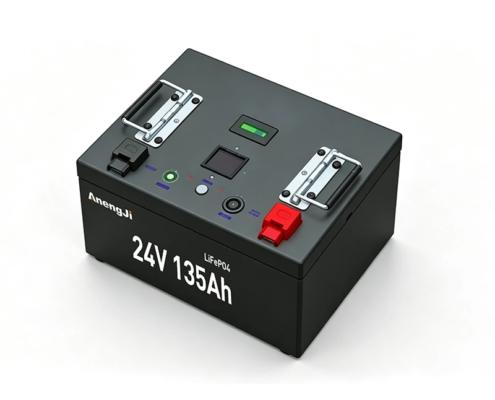

The TP24V135Ah is a high-capacity 24V 135Ah LiFePO4 battery designed to deliver longer runtime without increasing the battery footprint. Maintaining the compact 355 × 255 × 300 mm enclosure, it provides 135Ah (3,456Wh) of energy, allowing electric vehicles and equipment to operate longer without modifying the existing battery compartment.

Built with Grade-A automotive LiFePO4 cells, this 24V lithium battery delivers a cycle life of more than 2,000 cycles, significantly reducing battery replacement and long-term maintenance costs compared with traditional lead-acid batteries. From frequent material handling to extended sightseeing operations, it provides dependable power for demanding commercial and recreational applications.

Key Features

Extended Cycle Life: With 2,000+ charge-discharge cycles, this LiFePO4 battery can significantly outlast conventional lead-acid batteries, helping reduce replacement frequency and total cost of ownership over the vehicle’s service life.
Stable Performance Across a Wide Temperature Range: Designed for reliable operation across a broad temperature range, with optional low-temperature preheating. The battery maintains stable discharge performance in both hot and cold environments.
High-Rate Discharge Capability: Supports high continuous discharge current to deliver strong torque to electric motors. Even during fully loaded uphill operation or acceleration, it provides smooth and consistent power output.
Standardized Customization: Backed by extensive battery manufacturing experience, we offer customization based on standardized battery platforms. Interface configurations and communication protocols can be adjusted to meet specific vehicle or equipment requirements.

Application Scenarios

Commercial Vehicles: 4–6 Seater Electric Sightseeing Carts, Hotel Shuttle Vehicles
Industrial Equipment: Electric Forklifts, Hydraulic Lifting Platforms
Recreation & Outdoor: Large Golf Carts, RV and Camper Van Auxiliary Power Systems

Why Choose This Lithium Ion Battery?

This battery uses advanced nickel-manganese-cobalt chemistry, delivering 20% higher energy density compared to LiFePO4 (LFP). It works reliably across a wide temperature range, from -20°C to +60°C, making it a safe lithium ion battery for both extreme cold and hot conditions.

Higher Energy Density: 20% more capacity than LiFePO4 in the same size.
Wide Temperature Range: Operates from -20°C to +60°C without losing stability.
Fast Charging: Standard 3A charging (4–6 hours full) or optional 5A fast charging (just 2.5 hours).
Cost-Effective: Over a 5-year period, the per-charge cost is as low as $0.05, four times cheaper than lead-acid.
Eco-Friendly: Fully recyclable and compliant with EU ELV standards, reducing heavy metal pollution and supporting sustainable supply chains.

Item	24V 104Ah
Product Dimensions	355255300mm
Product weight	38.4±2kg
Material system	LiFePO4
Nominal voltage	25.6V
Nominal Capacity	135Ah
Configuration	8S1P
Nominal energy	3456Wh
IP Rating	IP55
Communication	4G/RS485/UART
Optional Features	Bluetooth / Display / Low-Temperature Preheating
