How Does a 48V LiFePO4 BMS Protect Industrial Power?

Introduction

A search for bms lifepo4 48v often returns low-cost boards described by cell count, amperage and Bluetooth support. Those labels are useful, but they do not answer the question an industrial buyer actually faces: will the battery remain available under the machine’s real load, and will it shut down predictably when something goes wrong?

Why Does a 48V LiFePO4 Battery Usually Need a 16S BMS?

“48V” is a system class, not a cell-level protection setting. A common LiFePO4 cell has a nominal voltage of 3.2V, so sixteen cells connected in series produce a 51.2V nominal pack:

16 cells × 3.2V = 51.2V nominal

That is why a 48V LiFePO4 battery BMS for 16S is commonly associated with “48V” equipment. Other chemistries can use a different cell count and voltage window, while some LiFePO4 products use 15S. Match the BMS, charger and controller to the exact chemistry, cell count and operating window—not the marketing name.

This confusion often appears during an ordinary quotation review: one supplier offers a 15S “48V” pack, another offers 16S at 51.2V, and both claim compatibility. The procurement team may compare only Ah and price, while the maintenance team later inherits a charger that reaches the wrong endpoint or a controller that reports voltage incorrectly. Pause the comparison until both bidders identify the cell model, pack voltage window, charger setting and BMS configuration. Adding or omitting a sense wire is not a valid conversion.

What Does an Industrial 48V LiFePO4 BMS Actually Control?

A BMS is a monitoring and decision system. According to Texas Instruments’ BQ76952 product documentation, a 3S-to-16S monitor and protector can measure cell voltage, current and temperature, provide configurable protections, support balancing and incorporate coulomb counting. This shows component capability, not finished-pack performance.

At system level, the BMS normally performs four linked tasks:

1. Monitor: collect individual cell voltage, pack current, temperature and internal diagnostic information.
2. Decide: compare measurements with configured limits, delays, hysteresis and operating states.
3. Act: permit, limit or stop charge and discharge through MOSFETs, contactors or control messages.
4. Record and communicate: report SOC, operating limits, alarms and fault history to the charger, controller or service tool.

The BMS cannot repair a weak cell, cool an undersized connection or guarantee battery life. The finished battery protection system still depends on cell quality, assembly, sensing, conductors, fuses, switching devices, thermal paths, charger, controller and validated software.

How Should You Size a 16S 48V LiFePO4 BMS?

Do not size the BMS from average power or battery capacity alone. Amp-hours describe charge capacity; amperes describe current. A 100Ah battery can be connected to very different loads, and the appropriate current path depends on the cell limits, conductor design, duty cycle and temperature.

Begin with a load profile containing:

• continuous mechanical or electrical output;
• peak current amplitude, duration and repeat interval;
• maximum charging current and any regenerative current;
• lowest intended operating voltage and controller efficiency;
• ambient and enclosure temperature, airflow and thermal paths;
• cable, busbar, connector, fuse and switching-device limits.

Illustrative calculation—not a product recommendation: if an industrial load requires 8kW and the assumed controller efficiency is 92%, the current at a nominal 51.2V would be:

8,000W ÷ (51.2V × 0.92) ≈ 170A

A 12kW transient under the same assumptions would be about 255A. Current rises as pack voltage falls, so neither number is a final rating. Engineering still needs the actual low-end voltage, transient duration, repetition, regenerative behavior, thermal environment and component data. The example simply shows why an “8kW motor” should not automatically lead to a 160A BMS selection.

Choose the Power-Path Topology Before the Amp Rating

This is where apparently similar products diverge. In a MOSFET-based BMS, the charge and discharge current may flow through semiconductor switches on or connected to the board. In a contactor-based architecture, the BMS may only measure current through a shunt or Hall-effect sensor and command external contactors; the main traction current does not necessarily pass through the BMS electronics.

An experienced integration team does not treat “continuous BMS current” as the system rating. In a MOSFET design, heating rises approximately with I²R across semiconductors, PCB copper, terminals and connections; enclosure temperature changes the result. In a contactor design, quoted BMS current may describe sensing or system configuration rather than current conducted through the board. The sensor, fuse, contactors, cables and connectors must be specified as one path.

Precharge Is Not an Optional “Soft Start”

Motor controllers and inverters can present a discharged DC-link capacitor when connected. Closing the main contactor directly into that capacitance can create a large inrush current. A precharge path uses controlled resistance and switching to raise the controller-side voltage before the main current path closes.

A Texas Instruments application brief on DC-link precharge explains that unmanaged inrush can damage cables, connectors or fuses and can cause contactor arcing, pitting or welding. Its example discusses higher-voltage systems, but the engineering mechanism is relevant whenever a 48V industrial controller has enough input capacitance and available current to create damaging inrush.

A robust sequence defines contactor order, precharge timing, voltage-convergence criteria and fault timeout. If the machine clicks but never becomes ready, collect battery-side and load-side voltage, precharge time, auxiliary-contact feedback and the event code before replacing parts.

Protection Settings Must Form a Coordinated Fault Strategy

A list of internet “recommended settings” is not an industrial commissioning plan. Cell overvoltage and undervoltage limits, charge and discharge current limits, short-circuit detection, temperature limits, detection delays, release points and retry behavior must come from the exact cell data, the pack risk analysis and the intended application.

Each protective function should answer four questions:

Why Cell Balancing Cannot Fix a Weak Cell or Bad Connection

Balancing manages differences between series cells; it is not a repair function. Passive balancing removes a small amount of energy from higher-voltage cells, while active balancing transfers energy through additional circuitry. Either method is constrained by its balance current, activation conditions, temperature and the time available near the region where the algorithm operates.

The problem often becomes visible after a weekend or an overnight full charge. The display reaches a high SOC, charging stops, and the same cell repeatedly appears at the top—even though pack voltage seems normal. A modest balancing path may be unable to offset the incoming charge current. The same pattern can also come from a low-capacity cell, elevated resistance, a loose busbar or a sense-wire problem. Compare individual cells at rest, near the end of charge and under a controlled load; then inspect connection voltage drop and charger taper. That evidence separates a correctable imbalance from a cell or connection that needs service.

Reject “add a stronger balancer” as the only remedy unless the supplier quantifies the imbalance, establishes cell condition and shows that the available balance current and time can correct it.

Accurate SOC and SOH Need More Than Pack Voltage

LiFePO4 has a relatively flat voltage region through much of its usable state of charge. That makes voltage alone a weak indicator of remaining energy during normal operation. A SOC display can therefore look stable for a long period and then change quickly—or drift over repeated cycles—if the current sensor, capacity parameter or endpoint logic is wrong.

Analog Devices’ battery-management overview describes SOC calculation using measured charge and discharge current through coulomb counting, alongside cell-voltage and temperature monitoring. In practice, coulomb counting still depends on correct current direction, sensor offset, usable-capacity configuration and valid correction conditions.

This matters in everyday dispatching. A supervisor may assign the final jobs because the dashboard still shows 40%, only for the machine to stop in an aisle under load. The immediate temptation is to buy more Ah. Before doing so, compare displayed SOC with accumulated amp-hours, minimum cell voltage during the stop, sensor offset, configured capacity and the actual shutdown event. If current direction or capacity calibration is wrong, a larger pack can reproduce the same misleading display. Record calibration, firmware and parameter versions so a replacement BMS does not reset the fleet’s learned baseline.

Why CAN or RS485 Does Not Guarantee Compatibility

CAN and RS485 describe communication technologies, not a universal battery language. Two devices can use the same connector and electrical interface while disagreeing about bit rate, node address, register map, message identifiers, scaling, heartbeat timing, charge limits and fault behavior.

An industrial smart BMS integration should therefore have a compatibility matrix containing:

• protocol name and version;
• bit rate, addressing and termination;
• message IDs or register map, units and scaling;
• heartbeat and timeout behavior;
• charge/discharge enable and limit messages;
• alarm, shutdown and recovery behavior;
• tested charger/controller models and firmware versions.

A familiar commissioning scene is a new charger with the correct voltage label and a communication cable that plugs in cleanly. Both screens light up, the cells look healthy—and charging remains at zero. Changing voltage thresholds is unlikely to repair a missing handshake or incompatible message map. Capture the bus state and charger fault first. Fleet and OEM quotations should define protocol documents, the party responsible for integration, tested firmware combinations and what happens when either supplier releases an update.

How Should Regional Conditions Change the BMS Specification?

Europe: Industrial Evidence and Cold-Charge Control

IEC 62619:2022 addresses safety requirements and tests for secondary lithium cells and batteries in industrial applications; its published scope includes example motive applications such as forklift trucks and AGVs. A reference to the standard does not prove that a particular pack is certified. Buyers should request the report or certificate identity, model coverage, edition, dates and verification route.

The EU Batteries Regulation 2023/1542 applies to industrial batteries and defines a battery management system. Obligations vary by category, capacity, economic-operator role and date, so a generic “EU compliant BMS” statement is insufficient.

For cold sites, specify temperature-sensor placement, charge-inhibit logic, charger response, optional heating strategy and recovery hysteresis. A warm enclosure wall does not prove that the coldest cell can safely accept charge.

United States: Equipment and Workplace Integration

US projects should align the complete pack and vehicle interface with equipment-manufacturer requirements, workplace charging arrangements and applicable local obligations. A component specification or marketplace listing cannot approve a modified machine.

Central Asia and Africa: Environmental and Service Resilience

These regions are not single operating environments. At a remote depot, a machine may stop late in the shift while the battery supplier is several time zones away. If the local team can send only a photo of a blank display, diagnosis can take longer than the repair. State the actual temperature, dust, moisture, altitude where relevant, vibration, charging power quality and service distance. Specify remote log access, the cables or service tools to keep on site, approved spares and the escalation route. Those details may protect uptime more effectively than a larger current label.

Commission the 48V LiFePO4 BMS Before Production Use

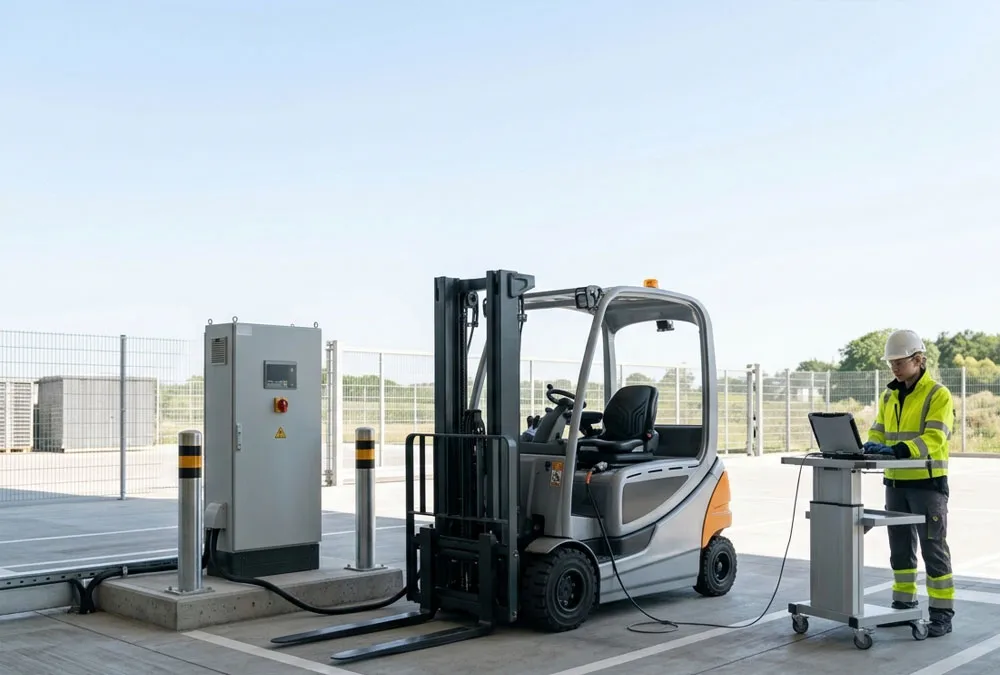

Commissioning is where a promising specification becomes an operating system. A qualified team should work from approved drawings and manufacturer procedures, using controlled conditions and project-specific acceptance limits.

1. Map every cell channel. Confirm chemistry, 16S order, sense-lead polarity and open-wire detection.
2. Correlate measurements. Compare each cell channel, pack voltage, current and temperatures with suitable reference instruments.
3. Validate the power path. Inspect fuse, contactors or MOSFETs, cables, busbars, connectors, precharge and auxiliary feedback.
4. Exercise communications. Confirm charger and controller handshake, limits, timeouts and fault messages.
5. Run the real load profile. Record cell spread, current, voltage, temperature and peak duration during representative operation.
6. Test safe recovery. Verify sleep, wake, charge inhibit, fault latch and service procedures without bypassing protection.
7. Archive the baseline. Save firmware, configuration, calibration and event-log formats for future diagnosis.

Powering on is not commissioning. The acceptance record must cover intended load, charger response, fault behavior and the service team’s ability to identify the cause.

What Should a 48V LiFePO4 Battery and BMS RFQ Include?

An industrial buyer needs a complete pack review, not a board recommendation. AnengJi can discuss custom LiFePO4 battery packs and BMS integration after receiving the load, charger, communications, mechanical and environmental requirements. No current rating, protocol, setting or certification is assumed here.

Frequently Asked Questions About 48V LiFePO4 BMS Design

What is the best BMS for a 48V LiFePO4 battery?

There is no universal best model. The suitable BMS matches the exact chemistry and series count, continuous and peak load profile, thermal environment, switching topology, charger/controller protocol, fault-recovery requirements and available validation evidence.

Does every 48V LiFePO4 battery use a 16S BMS?

A common 51.2V nominal LiFePO4 pack uses 16 cells in series, but the label “48V” is not sufficient proof. Confirm the actual cell count, chemistry, cell model and equipment voltage window before selecting the BMS.

How do you reset a BMS on a 48V lithium battery?

Use the manufacturer-defined procedure only after identifying the fault and its recovery condition. Sleep, cell undervoltage, low-temperature charge blocking, communication loss and precharge failure require different actions. Never bypass the BMS, fuse, interlock or thermal protection to force a reset.

Can incorrect BMS settings shorten battery life?

Incorrect cell limits, delays, temperature behavior, charge commands or SOC parameters can expose the pack to unsuitable operating conditions or cause repeated early shutdowns. Settings must follow the exact cell and pack requirements and be validated in the intended system.

Is an active balancer a replacement for a BMS?

No. A balancer addresses energy differences between cells; it does not replace complete voltage, current, temperature, short-circuit, power-disconnect, communication and fault-management functions.

Can four 12V LiFePO4 batteries be connected in series to make a 48V system?

Only consider this when every battery manufacturer explicitly permits the required series configuration and the complete system has been engineered accordingly. Independent internal BMS units can trip at different times and provide less system-level visibility than a coordinated 16S architecture.

The Engineering Decision Is Bigger Than the BMS Board

A dependable industrial battery BMS begins with the correct 16S chemistry and voltage window, but it succeeds only when the protection chain works as a system. Load current must be understood over time. Sensors must be calibrated. Fuses, MOSFETs or contactors and precharge must act in the correct sequence. The charger and controller must exchange the right information. Faults must leave evidence that a service team can use.

Before comparing BMS prices, define the operating envelope and require every bidder to show how the proposed pack will measure, decide, act and recover within it.
