What Is a 20ft BESS Container? The Ultimate Turnkey Guide to 5MWh Systems

Introduction

Grid modernizations move extremely fast today. Traditional static power distribution setups can no longer handle unpredictable peak loads effectively. Heavy industrial facilities, utility operators, and solar EPC firms all face escalating demand charges alongside strict power-quality grid codes. Deploying a reliable, factory-integrated 20ft BESS Container has become a primary strategic method to stabilize power operations and avoid high infrastructure upgrade costs globally. These heavy-duty structural units pack massive energy reserves directly into standard shipping profiles, transforming volatile alternative energy sources into highly dependable, on-demand dispatchable power assets.

What Is a 20ft BESS Container?

A 20ft BESS Container is a self-contained, turnkey industrial energy platform housed inside a standard intermodal ISO shipping structure. It fully integrates high-density lithium cell racks, advanced multi-level thermal controls, bi-directional power conversion equipment, comprehensive fire suppressors, and automated intelligent monitoring software into one single deployable asset.

Definition of a 20ft Containerized Battery Energy Storage System

Technically speaking, a Containerized Battery Energy Storage System functions as a mobile substation building. It takes alternating current from utility lines or solar arrays, converts it to direct current for cell-level storage, and pushes it back smoothly when local operational demand spikes. Every sub-assembly works under unified central software control networks to ensure immediate response times.

Why Are 20ft BESS Containers Becoming the Industry Standard?

Physical footprint limitations and rapid project timelines make traditional brick-and-mortar battery rooms obsolete. Heavy infrastructure developers prefer standard twenty-foot dimensions because they fit seamlessly onto regular flatbed transport trucks. They pass through standard international shipping ports without requiring special permits, making procurement logistics incredibly simple and predictable.

Typical Energy Capacity of a 20ft BESS Container

Total operational capacity ranges vary widely based on internal architectural setups. Standard air-cooled systems using traditional form factors generally deliver around 1MWh to 2.5MWh of total storage capacity. However, utilizing high-density cells paired with modern liquid-distribution blocks can elevate that same physical footprint up to 5MWh, matching true utility-scale performance demands.

Why Choose a 20ft Containerized Battery Energy Storage System?

Standard ISO Container Design for Global Transportation

Logistical headaches kill large energy project schedules daily. Because these units utilize standardized structural dimensions, you can ship them using standard global freight networks. No custom heavy-haul routing permits are required. This straightforward transport compatibility significantly reduces transoceanic shipping fees and simplifies remote inland site arrivals.

Factory-Assembled and Plug-and-Play Deployment

Unpredictable field construction environments introduce significant wiring mistake risks. Building the entire system inside a controlled factory floor ensures rigorous point-to-point validation before shipment. When the finished structural unit arrives on your prepared job site, installation crews simply secure the outer base bolts, terminate main high-voltage AC connections, and plug in communication links.

Modular Expansion for Future Energy Storage Projects

Energy profiles rarely remain completely static over ten-year operating periods. Standardized containerized designs allow managers to scale up local capacities by placing additional blocks side by side. You can easily parallel multiple container enclosures together onto a shared central AC bus, scaling your total operating assets seamlessly as facility loads expand.

Lower Installation Time and Reduced Civil Engineering Costs

Pouring massive concrete foundations over extensive field acreage demands significant capital. A compact, integrated enclosure requires only a basic level concrete pad or simple pier footings. Minimizing specialized structural site preparation requirements can shave weeks off field execution timelines, keeping your core project budgets highly optimized.

Suitable for Utility, Commercial and Industrial Applications

Whether stabilizing regional transmission lines or protecting continuous manufacturing plants from voltage drops, these versatile enclosures adapt easily. Their rugged, weatherproof steel construction withstands harsh environments, making them ideal for heavy industrial zones, coastal ports, or desert solar installations.

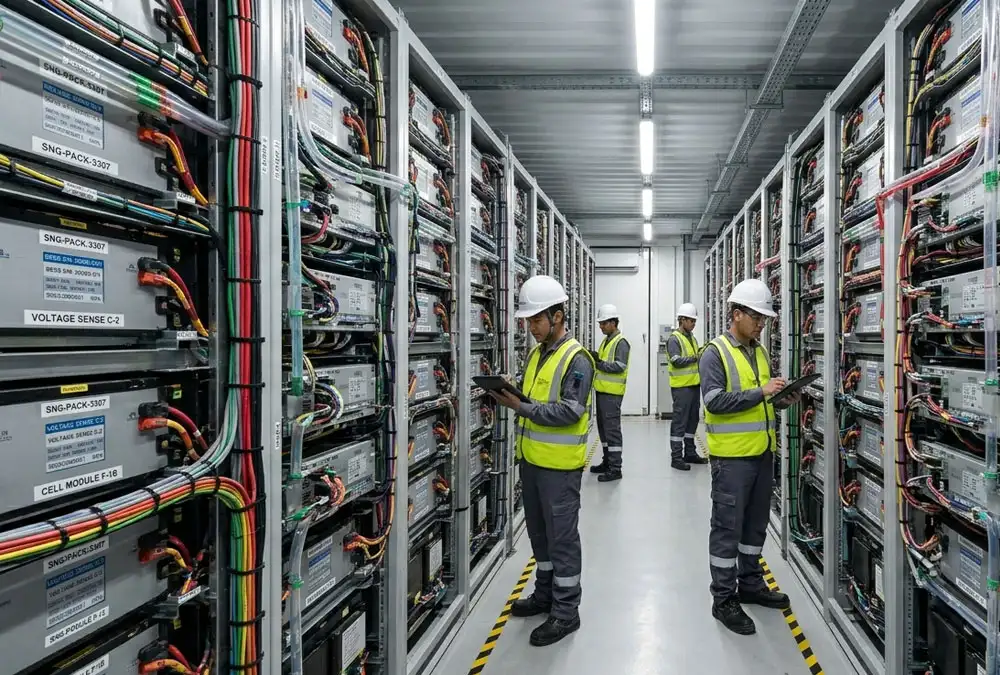

Key Components Inside a 20ft Battery Storage Container

Battery Packs and Rack Configuration

The core energy block consists of numerous individual electrochemical cells arranged into structural modules, which are stacked securely inside heavy-duty seismic-rated steel racks. These strings connect in high-voltage series paths to achieve 1000V or 1500V DC operational targets, minimizing conduction losses across internal busbars.

Battery Management System (BMS)

The central protective network uses multi-tier digital tracking topology. Local balance cards measure individual cell voltages and temperatures continuously. This granular real-time telemetry flows directly up to master controllers, which can immediately isolate specific racks if abnormal operating parameters occur, keeping the broader system fully protected.

Power Conversion System (PCS)

The bi-directional inverter network acts as the primary link between internal DC storage and the external AC grid. Utilizing fast-switching IGBT or silicon carbide semi-conductors, the PCS balances real and reactive power outputs with high efficiency, maintaining clean power quality across local distribution infrastructure.

Energy Management System (EMS)

The intelligent software platform monitors local power pricing structures, solar generation curves, and facility building loads. By executing automated dispatch algorithms, the system maximizes peak-shaving savings and participates in lucrative ancillary grid services without requiring manual operator intervention.

Thermal Management System (Liquid Cooling vs Air Cooling)

Do not let generic marketing catchphrases about basic air cooling fool your engineering teams. If an internal piping layout exhibits poor fluid mechanics, localized hot spots will still degrade cells prematurely. Liquid cooling loops distribute uniform thermal regulation across every internal module, maximizing cell lifespan and preventing capacity drift.

Fire Suppression and Safety Protection System

Multi-stage safety designs are absolutely essential for large asset protection. Modern configurations combine early-stage off-gas sensors with automated clean-agent gas suppression. Mechanical explosion relief vents and localized water-deluge backstops are also integrated to meet strict modern urban safety codes.

Monitoring, Communication and SCADA Integration

Central plant operators track system performance via standardized industrial communication protocols like Modbus TCP or DNP3. Internal fiber networks stream real-time operating metrics directly to local SCADA centers and secure cloud tracking platforms, allowing for immediate remote diagnostics.

How Much Energy Can a 20ft BESS Container Store?

Typical Capacity Range (500kWh–5MWh)

Total usable energy density is heavily dependent on interior structural layout choices. Entry-level setups utilizing spacious interior walk-in layouts typically deliver between 500kWh and 2MWh of total capacity. Modern exterior-access designs remove central aisles completely, allowing developers to pack up to 5MWh inside standard twenty-foot dimensions.

How Battery Chemistry Affects Capacity

Choosing an underlying cell chemistry dictates your final volumetric energy density metrics. Traditional NMC options provide dense footprints but require intensive thermal protection. Lithium Iron Phosphate (LiFePO4) has become the dominant industry standard, providing an optimal balance of high cycle life, competitive pricing, and excellent thermal safety.

Power Ratings and C-Rate Selection

Matching system C-rates to your specific operational profiles is critical for project financial returns. A 0.5C configuration delivers steady power over a four-hour window, making it ideal for energy shifting applications. Fast 1C or 2C setups discharge their full capacity within one hour or less, providing the rapid response needed for frequency regulation.

Factors That Determine Container Energy Density

Final energy density values depend on more than just choosing high-capacity cell types. Implementing compact liquid-cooling plates eliminates bulky internal air ducts, allowing engineers to pack structural racks tighter together. This advanced layout optimization maximizes total kilowatt-hour capacity per square meter of site footprint.

20ft BESS Container Applications Across Different Industries

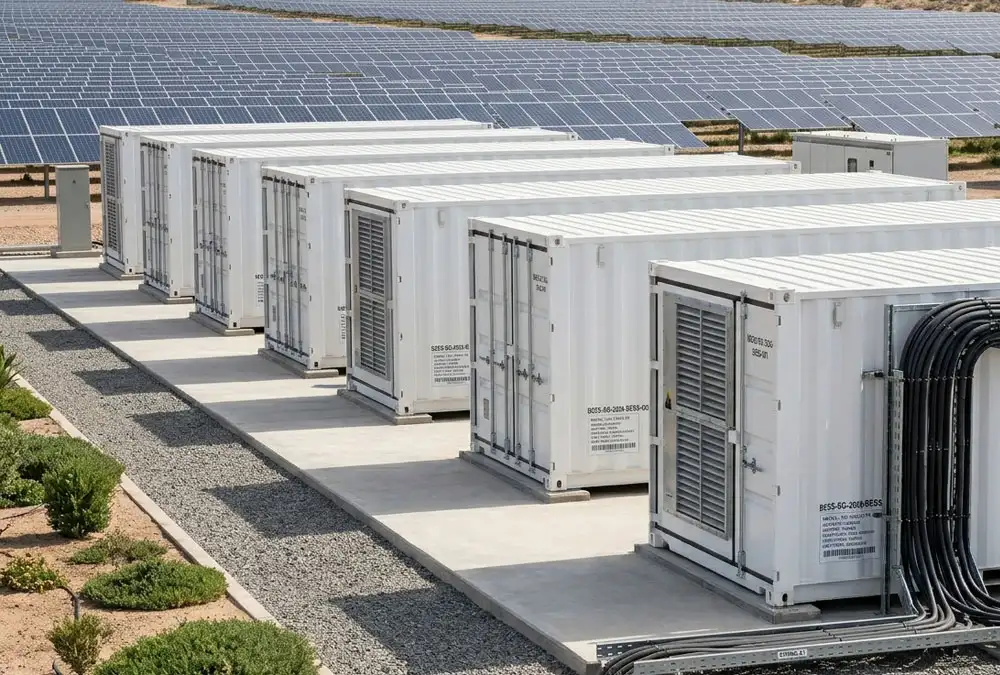

Solar PV + Battery Energy Storage

Co-locating energy storage assets with utility solar plants directly resolves afternoon grid curtailment challenges. By capturing excess generation during peak sunlight hours, asset owners can store clean energy and dispatch it during profitable evening demand windows, optimizing total power purchase agreement yields.

Industrial Peak Shaving and Load Shifting

Manufacturing facilities with heavy motor-starting loads face expensive utility demand charges. A localized Energy Storage Container monitors real-time building power draws, discharging instantly when consumption breaks preset thresholds. This targeted peak shaving lowers monthly utility billing without disrupting factory production schedules.

Commercial and Industrial (C&I) Energy Storage

Modern commercial facilities utilize stationary storage systems to secure uninterrupted operational continuity. Integrating an on-site 20ft lithium battery storage container protects sensitive data infrastructure and automated processing lines from sudden voltage sags or extended regional utility power outages.

EV Charging Station Energy Storage

Deploying ultra-fast fleet charging networks introduces massive, sudden load strains to local distribution transformers. Utilizing a buffer storage container allows stations to draw power steadily from the grid during low-demand periods. This stored energy then supports rapid high-power vehicle charging without creating extreme grid stress.

Microgrid and Off-Grid Power Systems

Remote mining operations and isolated island communities rely on independent microgrids for daily power. Combining diesel generators with advanced battery containers stabilizes local networks, reducing expensive fuel consumption and enabling smooth integration of alternative wind and solar assets.

Utility-Scale Renewable Energy Projects

Transmission operators utilize large-scale Utility-Scale BESS configurations to deliver essential grid stabilization services. These systems provide rapid active power injection, automatic frequency response, and black-start capabilities, helping maintain transmission network reliability across large regional markets.

20ft BESS Container vs 40ft BESS Container

Which Container Size Is Right for Your Project?

If your project site has strict physical space limits or complex access roads, the 20ft configuration is typically your best choice. For massive, open utility-scale projects requiring large block capacities, 40ft structures can help minimize your total individual container count across the field footprint.

How to Choose the Right 20ft BESS Container

Selecting a high-capacity energy storage solution requires systematic evaluation of multiple technical design criteria:

• Determine Energy Storage Capacity Requirements: Calculate your exact load profiles and daily discharge needs to size total megawatt-hour targets accurately.
• Select the Appropriate Battery Chemistry: Require stable Lithium Battery Energy Storage System options, prioritizing LiFePO4 cells for long cycle lifetimes.
• Evaluate Cooling Technology: Choose liquid-cooling manifolds over basic air fans to ensure uniform cell temperatures and minimize degradation.
• Review Safety Certifications and Compliance: Verify full compliance with international safety standards including UL 9540, UL 1973, and NFPA 855.
• Consider Future Expansion Requirements: Select open architecture string controllers that allow for straightforward capacity additions as facility loads grow.
• Choose an Experienced BESS Manufacturer: Partner with established integrators who provide complete end-to-end hardware validation and field support.

Common Challenges When Deploying a 20ft Energy Storage Container

Site Preparation

Engineers must ensure soil compaction values meet minimum bearing requirements before dropping heavy steel enclosures. Implementing proper perimeter drainage systems prevents water accumulation near high-voltage conduit entries, securing long-term structural integrity.

Grid Connection Requirements

Navigating utility interconnection codes requires extensive power system engineering studies. Systems must deliver precise ramp-rate controls, active voltage regulation, and strict total harmonic distortion compliance to clear local utility approval hurdles without costly delays.

Environmental Conditions

Operating storage systems in extreme desert heat or freezing coastal environments demands robust structural insulation. Enclosures require high IP ratings and durable anti-corrosion coatings to protect internal electronics from dust ingress and salt spray degradation.

Transportation and Crane Installation

While standard dimensions simplify shipping logistics, final on-site placement still requires careful rigging planning. Project managers must verify local crane capacities and clear overhead power lines to ensure safe, efficient container positioning.

Operation and Maintenance Planning

Long-term asset performance relies on systematic preventative maintenance schedules. Teams must conduct routine coolant fluid testing, clean HVAC air filters, and perform regular torque checks on main electrical busbars to maximize system uptime.

Why Choose AnengJi Containerized Battery Energy Storage Solutions?

AnengJi Power delivers fully integrated hardware and software solutions engineered for demanding utility and industrial applications. Our systems leverage advanced LiFePO4 chemistry and high-efficiency liquid cooling to ensure reliable performance and safety across heavy duty cycles.

Our experienced engineering team provides comprehensive support throughout your project’s lifecycle, from initial system configuration and grid modeling to final on-site commissioning. With a proven track record in global energy markets, we provide the field expertise and long-term support needed to help you maximize your renewable asset investment.

Frequently Asked Questions About 20ft BESS Containers

How many MWh can a 20ft BESS container store?

Usable capacity depends heavily on internal layout design. Standard configurations typically range from 1MWh to 2.5MWh, while advanced exterior-access liquid-cooled designs can pack up to 5MWh inside standard twenty-foot dimensions.

How long does a 20ft BESS container last?

High-quality LiFePO4 systems are engineered to complete over 6,000 full operational cycles. When supported by precision liquid cooling and smart BMS management, these systems deliver 10 to 15 years of reliable operational service.

Can a 20ft BESS container be expanded later?

Yes. The modular design allows developers to parallel multiple container enclosures together onto a shared central AC bus, scaling total energy capacity smoothly as site requirements increase.

What cooling system is better for containerized BESS?

Liquid cooling is highly recommended for high-density configurations. It delivers uniform temperature distribution across cells, minimizing degradation and reducing internal auxiliary power consumption compared to air cooling.

How much space is required for installation?

While the enclosure fits standard 20ft shipping dimensions, installation layouts must include required clearance zones—typically 1.5 to 3 meters on all sides—to meet local safety codes and ensure maintenance access.

Is a 20ft BESS container suitable for solar farms?

Yes. These systems are widely deployed across solar farms to mitigate afternoon grid curtailment, smooth variable PV outputs, and shift clean energy sales to high-value evening demand periods.

What certifications should a containerized BESS have?

To ensure grid safety and compliance, systems should hold complete international certifications including IEC 62619, UL 9540, UL 1973, and full compliance with NFPA 855 fire protection standards.
